ASTM B338 Gr 2 Titanium Tube Pickled Surface Treatment Titanium Seamless Pipe

Brand Name : PRM

Model Number : Custom

Certification : ISO9001

Place of Origin : China

MOQ : 1kg

Price : Negotiate

Payment Terms : T/T

Supply Ability : 10ton/month

Delivery Time : 7~10days

Packaging Details : Plywood case

Name : Titanium sealmess pipe

Material : Titanium & Titanium Alloy

Grade : Gr1,Gr2,Gr5,Gr7,Gr9,Gr11,Gr23,TA0,TA1,TA2,TC4,TA10,TA18

Outdiameter : φ5~60.3mm

Wall thickness : 0.5~5.0mm

Standard : ASTM B337,ASTM B338,ASTM B861,ASTM B862,JIS H4631 Etc.

Contact Now

ASTM B B338 Gr2 Titanium Seamless Pipe

1. Information Of ASTM B338 Gr2 Titanium Seamless Pipe:

Seamless titanium pipes are weld-free pipes made of titanium. Among titanium materials, Gr1 ,Gr2 is the most popular.

Product Description: seamless titanium pipe ASTM B338 Gr 2 Titanium Tube Pickled Surface Treatment Titanium Seamless Pipe
Standard ASTM B338
Material Gr1,Gr2,Gr5,Gr7,Gr9 etc.
Density 4.50 g/cm³
Surface treatment Pickled
Outer Diameter Range (mm) φ5~60.3
Wall Thickness (mm) 0.5~5.0

2. Tolerance of ASTM B338 Gr2 Titanium Seamless Pipe:

Outer diameter, mm
Tolerances ( mm)
 Wall thickness tolerance (%)
3.2≤OD≤38
+0.397/-0.794
 ±12.5
38＜OD≤102
+0.794/-0.794
 ±12.5
102＜OD≤203
+1.588/-0.794
 ±12.5
203＜OD≤432
+2.382/-0.794
 ±12.5

3.Chemical Content of ASTM B338 Gr2 Titanium Seamless Pipe:

Element Composition,%
Grade1 Grade2 Grade3 Grade4 Grade5 Grade6 Grade7 Grade9 Grade11 Grade12
N max 0.03 0.03 0.05 0.05 0.05 0.03 0.03 0.03 0.03 0.03
C max 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08
H max 0.05 0.015 0.015 0.015 0.015 0.015 0.015 0.015 0.015 0.015
Fe max 0.2 0.3 0.3 0.5 0.4 0.3 0.5 0.25 0.2 0.3
O max 0.18 0.25 0.35 0.4 0.2 0.2 0.25 0.15 0.18 0.25
Al 5.5-6.75 4.0-4.6 2.5-3.5
V 3.5-4.5 2.0-3.0

Titanium tubes are supplied in straight or U-bent tubes. Titanium spiral tubes and titanium capillary tubes are available upon request. Length: 4000 mm; 6000 mm; 12000 mm; Available in a variety of lengths and chopped cuts. Maximum development length: 20 m.

Inspection & Testing: Ultrasonic Testing (UT), Electrical Non-Destructive Testing (ET), Flaring Testing, Hydrostatic Testing, Flattening Testing, Visual Surface Testing, Dimensional Testing, Tensile Performance Testing, and Chemical Element Analysis.

Please click below button for learn more our products.

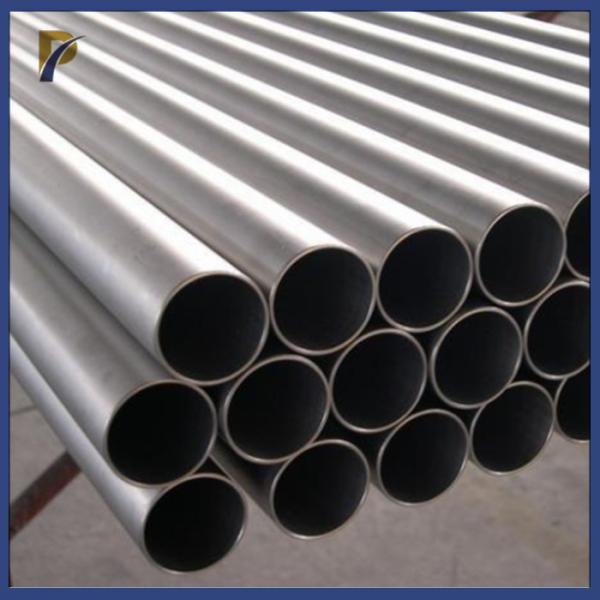

ASTM B338 Gr 2 Titanium Tube Pickled Surface Treatment Titanium Seamless Pipe

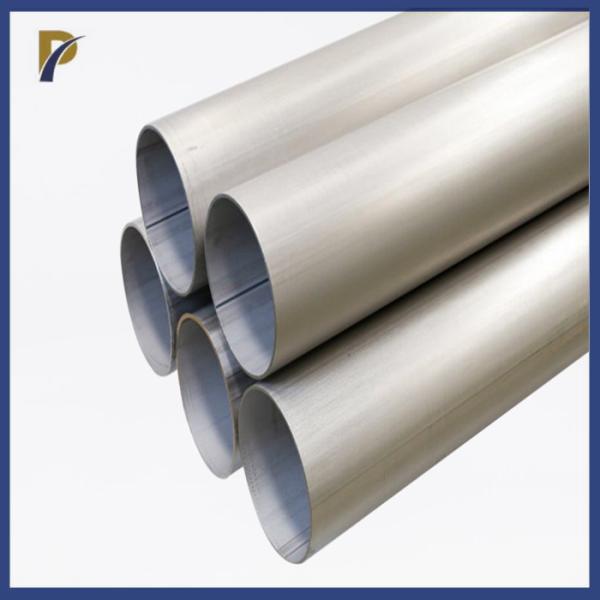

ASTM B338 Gr 2 Titanium Tube Pickled Surface Treatment Titanium Seamless Pipe
