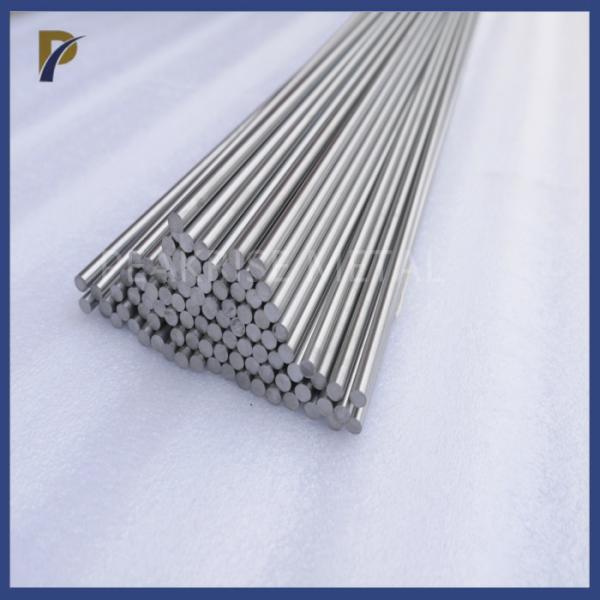

Polished Surface TZM Alloy Molybdenum Bar Diameter 8mm 10mm 15mm

Brand Name : PRM

Model Number : custom

Certification : ISO9001

Place of Origin : China

MOQ : 1kg

Price : $50~80/kg

Payment Terms : T/T

Supply Ability : 2000kgs/month

Delivery Time : 7~10 work days

Packaging Details : Plywood case

Name : diameter 8mm,10mm,15mm TZM alloy molybdenum rod polished surface

Material : Titanium Zirconium Molybdenum Alloy

Grade : TZM

Diameter : 1~100mm

Length : <2500mm

Surface : polished

Standard : ASTM B387

Elongation : ≥10%

Contact Now

Diameter 8mm,10mm,15mm TZM Alloy Molybdenum Rod Bar Polished Surface

1. Information Of TZM Alloy Molybdenum Rod:

TZM molybdenum alloy round rod is a superalloy material composed of elements such as molybdenum, zirconium and titanium. It has excellent high-temperature mechanical properties, high-temperature creep resistance and corrosion resistance, so it is widely used in high-temperature fields, such as aerospace, nuclear energy, electronics and other fields. The following will introduce the dimensions, tolerances, implementation standards, advantages and uses of TZM molybdenum alloy round rods in detail.

2. Size and Tolerance Of TZM Alloy Molybdenum Rod:

Diameter 1~100mm
Length <2500mm
Standard ASTM B387
Delivery condition Diameter Diameter tolerance(%) Max length
Forging or sintering <10 ±0.1 2500
10~30 ±0.1 2000
30~60 ±0.1 1500
60~100 ±0.2 1000
100~200 ±0.2 600
>200 Manufacture according to customers’ requirements

Tensile strength
Elongation

Material Composition

610 Mpa

≥10%

Mo,TZM,Mo-La

Polished Surface TZM Alloy Molybdenum Bar Diameter 8mm 10mm 15mmPolished Surface TZM Alloy Molybdenum Bar Diameter 8mm 10mm 15mm

3. Advantage Of TZM Alloy Molybdenum Rod:

TZM molybdenum alloy round rod has excellent high temperature strength and high temperature creep resistance, can be used for a long time under high temperature conditions, and is not easy to deform and damage.


TZM molybdenum alloy round rod has good corrosion resistance, can be used in corrosive media such as acid and alkali, and is not easy to be damaged.


TZM molybdenum alloy round rod has excellent processing performance, can be processed by cutting, welding, bending, etc., and is easy to process into parts of various shapes.


4. Application Of TZM Alloy Molybdenum Rod:


TZM molybdenum alloy round rods are mainly used in high temperature fields, such as aerospace, nuclear energy, electronics and other fields.

Specific applications include:

Manufacturing aerospace engines, burners and other components.


Manufacture components of nuclear energy equipment such as nuclear reactors and nuclear fusion devices.


Manufacture components of industrial equipment such as high-temperature furnaces and vacuum furnaces.


Manufacture components of high-temperature thermocouples, vacuum tubes, semiconductor devices and other electronic components.
